Industrial manufacturing plants represent one of the most demanding and varied electrical procurement environments in B2B project supply. A greenfield factory project requires a complete electrical package spanning medium voltage supply infrastructure, step-down transformers, low voltage main distribution, motor control centers, branch circuit wiring, control and instrumentation cabling, and plant-wide earthing — all coordinated with the mechanical process design.

This guide covers the major electrical procurement categories for an industrial plant or manufacturing facility project. It is structured for EPC contractors, plant electrical engineers, and procurement teams sourcing electrical products from China, and covers specification requirements, product selection criteria, and the questions to confirm before placing orders.

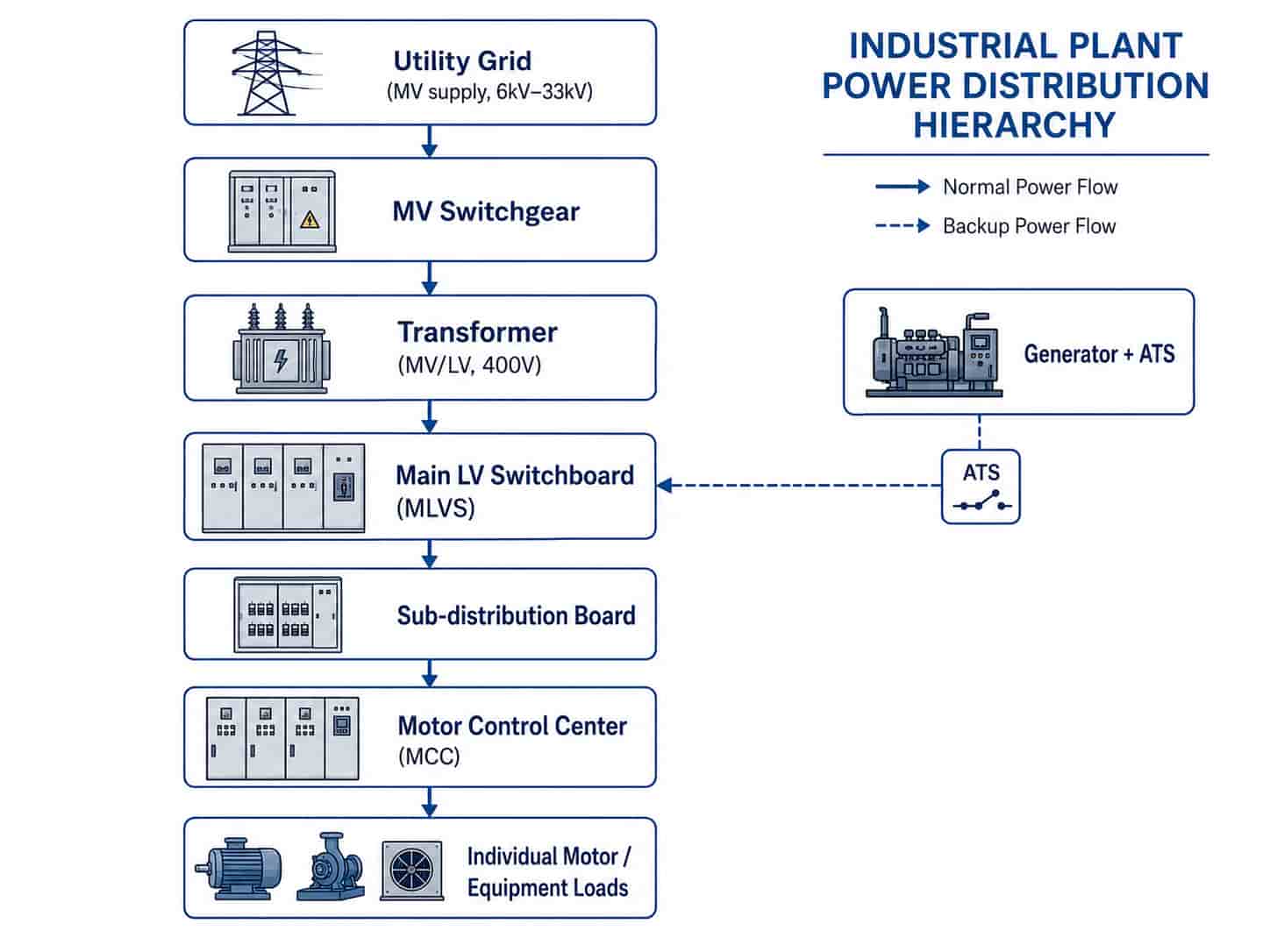

Industrial Plant Power Distribution Architecture

The power distribution hierarchy in an industrial plant follows a standard structure from the utility connection point to individual loads. Understanding this hierarchy is the starting point for organizing the procurement package by voltage level and system function.Diagram showing industrial plant power distribution from utility connection through MV switchgear, transformer, MCC to motor and equipment loads

  • Utility medium voltage supply: incoming power at 6kV, 10kV, 20kV, or 33kV from the grid — voltage determined by plant load and local utility
  • MV switchgear: ring main unit (RMU) or primary switchboard receiving the utility connection and distributing to on-site transformers
  • MV/LV transformer: steps down from utility voltage to 400V (or 690V for large motor drives) for plant distribution
  • Main LV switchboard (MLVS): the primary LV distribution point, distributing to sub-boards, MCCs, and large individual loads
  • Sub-distribution boards: secondary distribution panels serving defined areas or process zones within the plant
  • Motor control centers (MCCs): dedicated panels housing motor starters, soft starters, and VFDs for process machinery
  • Branch circuit wiring: individual cable runs from distribution boards and MCCs to motors, lighting, HVAC, and process equipment
  • Control and instrumentation wiring: low-voltage control cables for PLC I/O, relay logic, and 4–20mA instrumentation loops



For larger industrial plants (above 5MW total connected load), a secondary MV distribution ring is sometimes used to feed multiple transformer substations across the site, reducing LV cable runs and improving power quality at distant loads.

Key Point: The transformer secondary voltage selection — 400V or 690V — significantly affects the procurement package. A 690V distribution system reduces current for the same power, allowing smaller cable cross-sections and lower I²R losses over long plant runs. However, it requires 690V-rated MCCs, motor starters, and cables throughout the LV system. Confirm the distribution voltage with the electrical design engineer before specifying any LV equipment or cables.



MV Supply Infrastructure

The medium voltage supply infrastructure is the first procurement category and determines the entry point for all downstream systems.

MV Switchgear

The MV switchgear at the plant entry point receives the utility supply and provides protection, metering, and distribution to transformers. For industrial plants:

  • Ring main unit (RMU): compact switchgear for sites with a single transformer connection — load break switch with cable and transformer protection fuse or circuit breaker
  • Primary switchboard: for sites with multiple transformer connections or complex MV distribution — includes bus section and multiple outgoing feeder circuits with protection relays
  • Insulation medium: SF6-insulated (compact, widely available) or solid dielectric (emerging preference for environmental reasons)
  • Protection: overcurrent and earth fault protection relays on outgoing transformer feeders; bus protection for larger switchboards
  • Standard: IEC 62271-200 (factory-built MV switchgear), IEC 62271-100 (circuit breakers)



MV Supply Cables

The MV underground cables from the utility connection point to the plant substation:

  • Voltage grade: match utility supply voltage — 6/10kV, 12/20kV, or 19/33kV
  • Conductor: copper or aluminum, sized for plant maximum demand with derating for installation method
  • Construction: XLPE insulation with metallic screen, SWA armoring for direct burial
  • Standard: IEC 60502-2
  • Terminations: cold-shrink or heat-shrink MV cable termination kits — confirm kit compatibility with cable outer diameter before ordering



For a detailed breakdown of MV cable construction and voltage grade designation, see Low Voltage vs Medium Voltage Cable: A Procurement Guide.



Transformers for Industrial Plants

Industrial plants typically use one or more dedicated MV/LV transformers to supply the LV distribution system. Key specification parameters:

  • Rating (kVA): sized for plant maximum demand plus 20–25% growth headroom — common ratings are 630kVA, 1000kVA, 1250kVA, 1600kVA, and 2000kVA per unit
  • Primary voltage: match utility MV supply voltage with appropriate tap changer positions (typically ±2×2.5%)
  • Secondary voltage: 400V (standard for most industrial LV distribution) or 690V for high-power drive applications
  • Vector group: Dyn11 standard for industrial LV distribution — provides neutral for single-phase loads and limits triplen harmonic propagation
  • Type: oil-immersed (ONAN) for outdoor substations; dry-type (AN) for indoor installation where oil is not permitted
  • Losses: specify maximum no-load and load losses for energy efficiency compliance — EU Tier 2 (EcoDesign) or equivalent
  • Standard: IEC 60076



Note: For plants with significant non-linear loads — VFDs, UPS systems, arc furnaces — specify a transformer with a K-factor rating or low-impedance design to handle harmonic currents. Standard distribution transformers may overheat with high harmonic content. Confirm total harmonic distortion (THD) levels with the process electrical engineer before specifying the transformer.



LV Switchgear and Distribution Boards

The main LV switchboard and distribution boards form the backbone of the plant’s LV power system.

Main LV Switchboard (MLVS)

  • Busbar rating: sized for transformer full-load current plus diversity factor — typically 1600A to 6300A for industrial plants
  • Incoming protection: ACB (air circuit breaker) with adjustable overcurrent and earth fault protection, rated for transformer prospective fault level
  • Outgoing circuits: MCCBs for sub-distribution boards; ACBs for MCC incomers and large motor direct feeders
  • Busbar material: copper busbar standard; aluminum busbar acceptable for cost reduction on large ratings
  • Form of separation: Form 4 Type 7 fully compartmentalized for maintainability in operating plants
  • IP rating: IP31 for indoor switchrooms; IP54 for switchgear located in plant areas with dust or splash exposure
  • Standard: IEC 61439-1/2



Sub-Distribution Boards

  • Rated current to match zone or area load with 20% spare capacity
  • MCCB or MCB protection on all outgoing circuits
  • Surge protection device (SPD) where boards are located in outdoor or exposed locations
  • Neutral and earth busbars sized for system earthing arrangement (TN-S standard for industrial plants)



Key Point: For industrial plants, specify Form 4 separation in the main switchboard even if it increases cost. Form 4 allows individual outgoing circuit MCCBs to be serviced without de-energizing the entire board — critical for plants where production continuity is a priority.

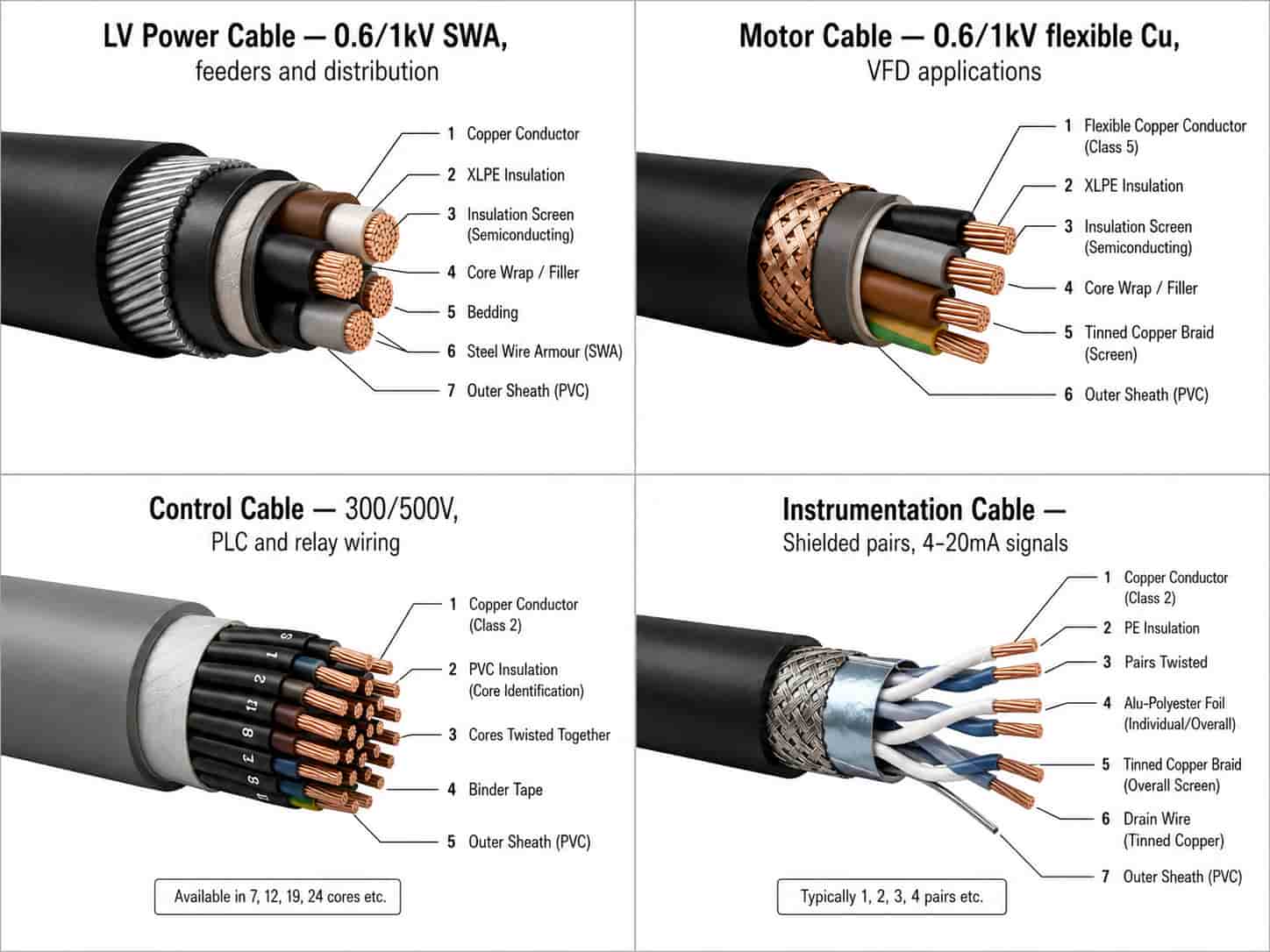

Cable Selection for Industrial Environments

Industrial plants require a wider range of cable types than standard commercial projects, covering power distribution, motor connections, control wiring, and instrumentation.Comparison of industrial cable types: armored power cable, motor feeder cable, control cable and instrumentation cable

Cable Type Voltage Rating Typical Construction Application Standard
LV Power Cable0.6/1kVCu, XLPE, SWA or unarmored, PVC sheathMain feeders, sub-distribution, branch circuitsIEC 60502-1
Motor Feeder Cable0.6/1kVCu, XLPE, 4-core, unarmored or SWAMCC to motor terminals (DOL / star-delta)IEC 60502-1
VFD Cable0.6/1kV – 1.8/3kVCu, XLPE, symmetrical Cu braid screen, 4-coreVFD output to motor — EMI shieldedIEC 60502-1 + VFD mfr spec
Control Cable300/500VCu, PVC, multi-core (7–27 cores), 1.5 or 2.5mm²PLC I/O, relay logic, auxiliary control circuitsIEC 60227 / IEC 60502-1
Instrumentation Cable300VCu, individually screened pairs, overall screen, 0.5–0.75mm²4–20mA loops, thermocouples, sensorsIEC 60228 conductors
Fire-Resistant Cable0.6/1kVCu, mineral insulated or enhanced fire performanceFire alarm, emergency lighting, evacuation systemsIEC 60702-1 / BS 7629

Power Distribution Cables

LV power cables for main feeders, sub-distribution, and branch circuits in industrial plants:

  • Voltage grade: 0.6/1kV for all LV distribution
  • Conductor: copper preferred for most industrial applications; aluminum for large feeders (185mm²+)
  • Insulation: XLPE standard for industrial environments — higher temperature rating than PVC
  • Armoring: SWA for cables routed in floor ducts, buried under plant floor, or in areas with mechanical damage risk; unarmored on cable tray
  • Standard: IEC 60502-1



Motor Feeder Cables

Motor feeder cables connect motor control center outputs to individual motors. Specification considerations:

  • Voltage grade: 0.6/1kV standard; 0.6/1kV rated to 1000V for 690V systems
  • Core count: 4-core (3 phases + earth) for standard motors; 5-core for motors with thermistor or brake wiring combined
  • Conductor: copper, cross-section sized for motor full-load current with derating for installation conditions
  • Flexibility: semi-flexible or flexible construction for motors with vibration or where final connection requires flexibility
  • Shielding: unscreened for standard motor connections; screened required for VFD (variable frequency drive) applications — see below



VFD Cable (Variable Frequency Drive Cable)

Cables between VFDs and motors require specialist specification to manage the high-frequency switching noise generated by the drive:

  • Symmetrical shielding: full copper braid or foil shield with drain wire, covering all three phases and earth symmetrically
  • Low capacitance: minimizes charging current on long cable runs
  • Voltage grade: rated for VFD output voltage including transient overvoltage — typically 0.6/1kV minimum, 1.8/3kV for long runs
  • Attenuation: shield attenuation rating to limit radiated EMI affecting adjacent instrumentation
  • Standard: IEC 60502-1 base; check VFD manufacturer cable specification requirements — some specify minimum shield coverage and attenuation



Key Point: Using standard unscreened motor cable on VFD outputs causes significant electromagnetic interference (EMI) that can disrupt PLC communications, instrumentation signals, and nearby equipment. Always specify dedicated VFD cable — with symmetrical copper braid shield — for any VFD-to-motor connection. Confirm the maximum cable length with the VFD manufacturer for the selected output frequency and voltage.

Control Cable

Control cables carry PLC I/O signals, relay logic wiring, and auxiliary control circuits at 24V DC or 230V AC:

  • Voltage rating: 300/500V (standard for control cable)
  • Core count: 7, 12, 19, or 27 cores depending on circuit grouping
  • Conductor: 1.5mm² or 2.5mm² stranded copper (1.5mm² for digital I/O; 2.5mm² for power control circuits)
  • Shielding: overall braid or foil shield for cables near VFDs or in electrically noisy environments
  • Standard: IEC 60228 conductors; IEC 60227 or IEC 60502-1 insulation



Instrumentation Cable

Instrumentation cables carry 4–20mA analogue signals, thermocouple signals, and low-level sensor outputs:

  • Voltage rating: 300V (instrumentation cable) or 150V (for individual pairs in multi-pair cables)
  • Construction: individually screened pairs (IS) for analogue signals; overall screen for digital signal cables
  • Conductor: 0.5mm² or 0.75mm² stranded copper — small cross-section as signal cables carry negligible current
  • Shielding: individual pair screen plus overall braid or foil shield — critical for noise rejection on long analogue signal runs
  • Drain wire: connected at one end only (at the control panel) to prevent earth loops
  • Standard: IEC 60228 conductors; manufacturer specification for overall construction

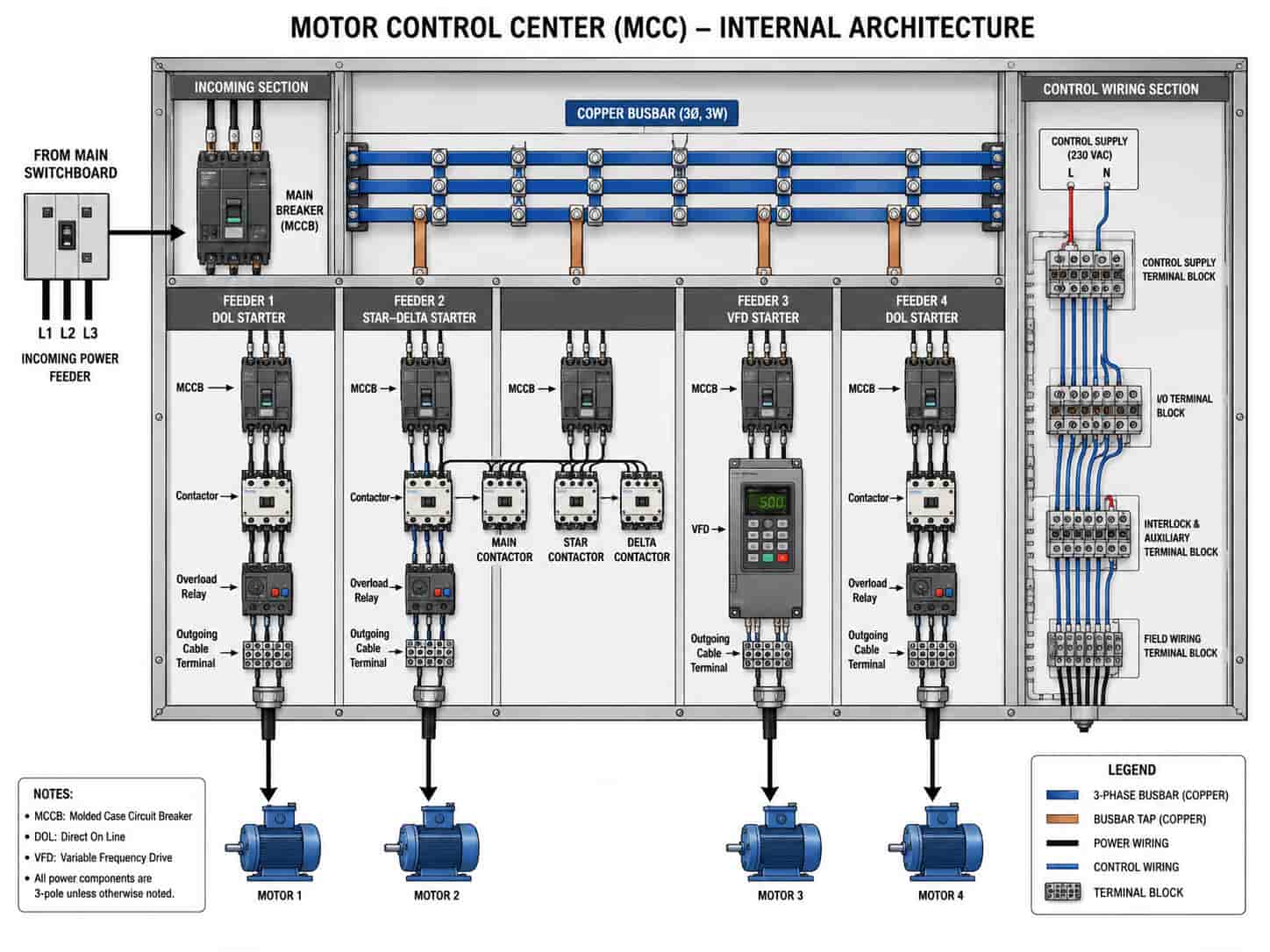

Motor Control Centers and Motor FeedersDiagram showing motor control center architecture with incoming feeder, busbar, individual motor starter modules and outgoing motor cables

The motor control center (MCC) is the central procurement item for any plant with significant motorized equipment. Key specification parameters:

MCC Configuration

  • Form of separation: Form 3b or Form 4 Type 6/7 — Form 4 preferred for operating plant maintainability
  • Incoming section: ACB or MCCB rated for full MCC load, with earth fault protection
  • Outgoing units: direct-on-line (DOL) starters for motors below approximately 7.5kW; star-delta or soft starters for larger motors; VFDs for variable-speed applications
  • Busbar: copper busbar rated for maximum MCC demand current and system fault level
  • IP rating: IP42 standard for indoor MCC rooms; IP54 for MCCs in plant areas
  • Standard: IEC 61439-1/2 (low voltage switchgear assemblies)



Motor Starter Selection

Starter Type Typical Motor Size Starting Current Application / Notes
Direct-On-Line (DOL)Up to 7.5kW (typical limit)6–8× FLC at startPumps, fans, conveyors — simplest, lowest cost
Star-Delta7.5kW – 75kW2–3× FLC at startCompressors, pumps — reduces starting current but torque dip at changeover
Soft Starter7.5kW – 500kW+2–4× FLC (adjustable)Pumps, fans, conveyors — smooth acceleration, no torque dip
Variable Frequency Drive (VFD)Any size≤ FLC (controlled ramp)Variable-speed fans, pumps, compressors — energy saving, precise speed control; requires screened VFD cable
Auto-Transformer Starter22kW – 200kW2–4× FLC (ratio-dependent)Large motors where star-delta torque dip is unacceptable

Motor Cable Sizing

Motor feeder cables are sized based on motor full-load current (FLC) from the motor nameplate or IEC 60034 tables, with derating applied for installation conditions:

  • Cable rating ≥ 125% of motor FLC for continuous duty motors (IEC 60364 requirement)
  • Apply derating factors for grouping, ambient temperature, and installation method per IEC 60364-5-52
  • Voltage drop calculation: confirm voltage drop to motor terminals does not exceed 5% of rated voltage under starting conditions
  • For star-delta starters: cable between MCC and motor carries 58% of FLC during run — size on this basis, not DOL starting current



Note: For motors above 90kW, consult the motor supplier for minimum cable cross-section at the motor terminal box. Large motors have fixed terminal box sizes and cable entry glands — specifying a cable that is too large in diameter will not fit the motor terminal box without modification.



Earthing and Lightning Protection

Industrial plant earthing serves safety, equipment protection, and signal reference functions. Key requirements:

  • Main earth electrode: driven earth rods or buried ring conductor at plant perimeter, sized to achieve design earth resistance (typically less than 1 ohm for industrial plants)
  • Main earth bar (MEB): copper bar in main switchroom connected to earth electrode and all structural metalwork, transformer tank, MV switchgear frame, and LV switchboard earth terminal
  • Equipment earth conductors: green/yellow insulated copper conductors from each MCC, distribution board, and motor frame to the nearest earth bar — sized per IEC 60364-5-54
  • TN-S earthing: separate protective earth (PE) and neutral (N) conductors throughout the LV system — mandatory for industrial plants with VFDs and sensitive instrumentation
  • Lightning protection: IEC 62305 risk assessment to determine whether air termination network and down conductors are required; bonding of all metallic structures to earth system



Key Point: In plants with VFDs, earth conductor sizing is critical. VFDs generate high-frequency earth leakage currents that require a low-impedance earth path — standard earth conductor sizing based on fault current alone may be inadequate. Specify 50% of the phase conductor cross-section as the minimum earth conductor for VFD motor circuits, or follow the VFD manufacturer’s earthing specification.



Hazardous Area Classification and ATEX Requirements

Industrial plants handling flammable gases, vapors, dusts, or fibers require electrical equipment and cables that meet hazardous area (ATEX or IECEx) requirements in classified zones:

  • Zone 0 / Zone 20: continuous presence of flammable atmosphere — very restricted equipment selection; typically only intrinsically safe (Ex i) equipment permitted
  • Zone 1 / Zone 21: flammable atmosphere likely in normal operation — Ex d (flameproof), Ex e (increased safety), Ex i, or Ex n equipment; cables must be appropriate for zone
  • Zone 2 / Zone 22: flammable atmosphere unlikely in normal operation — Ex n (non-sparking) equipment acceptable; standard industrial cables acceptable where surface temperature is controlled



For cables in hazardous areas:

  • Armored cable (SWA or braided) is generally required in Zone 1/2 to prevent mechanical damage that could create ignition sources
  • Cable glands must be certified for the zone and Ex protection concept — confirm gland certification matches the equipment enclosure Ex certification
  • Instrumentation cables in hazardous areas must use intrinsically safe (IS) barriers or galvanic isolators at the control panel end



Note: Hazardous area electrical procurement requires confirmation of zone classification drawings (Ex zone drawings) from the process engineer before any equipment or cable is specified. Supplying non-ATEX equipment into a classified zone is a safety and regulatory compliance issue — not a procurement preference.

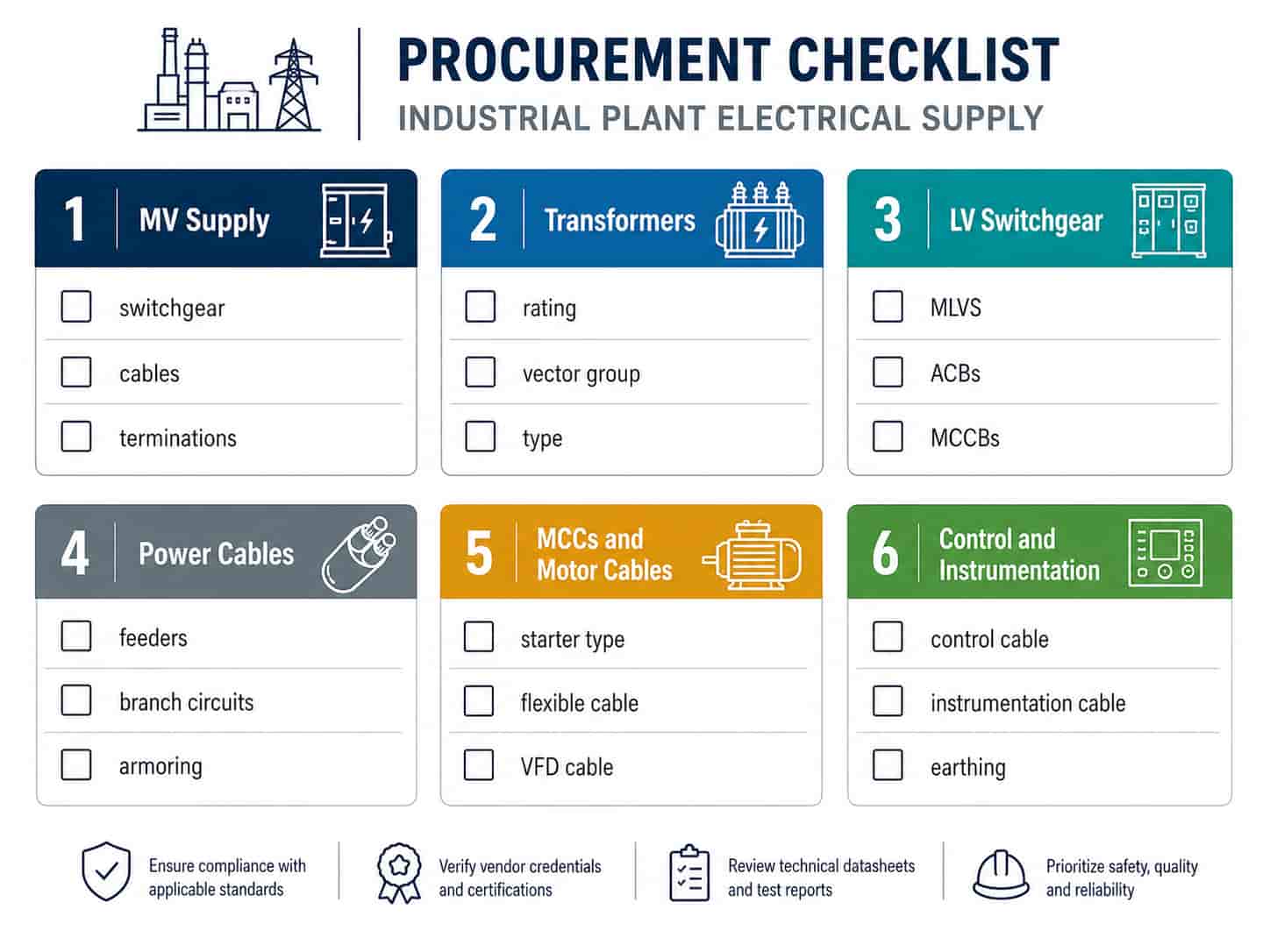

Complete Procurement ChecklistProcurement checklist for industrial plant electrical supply including MV cables, transformers, LV switchgear, MCCs, motor cables and control cables

Category Key Products Key Specification to Confirm
MV supplyRMU / primary switchboard, MV cables, terminationsVoltage grade, utility authority approval, protection relay type
TransformersMV/LV oil-immersed or dry-typekVA rating, voltage ratio, vector group, K-factor if harmonic loads present
LV switchgearMLVS, ACBs, MCCBs, sub-distribution boardsBusbar rating, fault level, Form of separation, IP rating
Power cables0.6/1kV XLPE Cu, armored and unarmoredConductor x-section, armoring requirement, installation method
MCCsMotor control centers, DOL/star-delta/VFD startersMotor schedule (kW, starter type), Form of separation, IP rating
Motor cablesStandard motor feeder cable; screened VFD cableVFD or standard designation, x-section, flexibility class
Control cablesMulti-core 300/500V PVC or LSZHCore count, conductor size, screening requirement
Instrumentation cablesIndividually screened pairs, overall screenPair count, IS pairs, conductor size, screen type
Earthing systemEarth bars, bonding conductors, earth rodsTN-S arrangement, VFD earth sizing, design earth resistance target
Hazardous area (if applicable)ATEX cables, glands, Ex equipmentZone classification, Ex protection concept, certification category

Tip: For large greenfield plant projects, split the electrical procurement into three parallel packages: a high-voltage package (MV switchgear, transformers, MV cables), an LV power package (MLVS, sub-boards, MCCs, power cables), and a C&I package (control cables, instrumentation cables, field instruments, PLC panels). This allows parallel procurement with specialist suppliers and simplifies technical review for each scope.



Quotation Requirements

RichingPower supplies power cables, control cables, instrumentation cables, switchgear, MCCs, and related electrical products for industrial plant and manufacturing facility projects. To receive an accurate quotation, please provide:

  • Project type: new greenfield plant, expansion, or refurbishment
  • Total connected load (kW or MVA) and utility supply voltage (kV)
  • Cable schedule or product list by category (MV cables, LV power cables, motor cables, control cables, instrumentation cables)
  • MCC scope: number of motor starters, starter types (DOL, star-delta, VFD), motor ratings (kW)
  • Hazardous area requirements: ATEX zones and equipment categories if applicable
  • Applicable standards: IEC, BS, or local utility specification
  • Delivery destination, Incoterms, and target delivery schedule



Submit your industrial plant project specification via the RichingPower contact page. For projects with a complete cable schedule or equipment list, attach the file for itemized quotation across all supply categories.



Conclusion

Industrial plant electrical procurement covers a broader product range than most other B2B project types — spanning MV infrastructure, LV distribution, MCCs, motor cabling, VFD cables, control wiring, and instrumentation, each with distinct specification requirements and installation constraints.

Organizing the procurement by system level — MV supply, LV main distribution, motor control, and C&I — allows each package to be specified correctly and sourced from the most appropriate supplier. The most common procurement errors in industrial plant projects are specifying standard motor cable on VFD outputs, undersizing earth conductors in VFD circuits, and omitting ATEX requirements for hazardous area equipment without zone classification confirmation.

For guidance on cable specification fields and how to interpret them, see How to Read a Cable Specification Sheet. To source industrial cables from China with quality verification, see

How to Source Industrial Cables from China. Contact RichingPower with your project specification for a coordinated supply quotation.

Frequently Asked Questions

QWhat electrical products are required for an industrial plant power supply project?
+
AAn industrial plant package typically includes: MV switchgear and cables; MV/LV transformers; main LV switchboard (MLVS); sub-distribution boards; motor control centers (MCCs) with DOL, star-delta, or VFD starters; LV power cables; motor feeder and VFD cables; control cables for PLC wiring; instrumentation cables for sensor signals; and a plant-wide earthing system.
QWhy do VFD applications require a special cable?
+
AVFDs generate high-frequency switching signals that standard unscreened cable cannot contain — this noise radiates and disrupts PLC communications, instrumentation signals, and nearby equipment. VFD cables use a symmetrical copper braid or foil shield to contain EMI. Always specify dedicated VFD cable with symmetrical shielding for any VFD-to-motor connection.
QWhat is Form 4 separation in an LV switchboard?
+
AForm 4 separation means all functional units in an LV switchboard are fully compartmentalized from each other and from the busbars. This allows individual circuit breakers or motor starters to be serviced without de-energizing the entire board — critical for industrial plants where production continuity during maintenance is a priority.
QWhat is the difference between a DOL starter, soft starter, and VFD?
+
AA DOL starter connects the motor directly to supply — simple but produces 6-8× FLC starting current. A soft starter ramps up voltage gradually, reducing starting current to 2-4× FLC with smooth acceleration. A VFD controls both voltage and frequency for full speed control from zero to maximum, lowest starting current, and energy savings on variable-speed loads — but requires screened VFD cable.
QWhen is ATEX-certified equipment required in an industrial plant?
+
AATEX or IECEx equipment is required in any area classified as a hazardous zone due to flammable gases, vapors, or dusts. Zone classifications are determined by the process safety engineer and shown on Ex zone drawings. Always obtain zone classification drawings before specifying electrical equipment for areas handling flammable materials.
QWhat information is needed to get a quotation for industrial plant electrical supply?
+
AProvide: project type (greenfield, expansion, or refurbishment), total connected load (kW or MVA), utility supply voltage (kV), cable schedule or product list by category, MCC motor schedule (ratings and starter types), hazardous area requirements if applicable, applicable standards, and delivery destination. Attaching a cable schedule or single-line diagram allows itemized quotation across all supply categories.

Ready to source cables or electrical equipment for your project?

Send your specification below — or message us directly on WhatsApp.







    Scroll to Top
