Transformer

Dry-type and oil-immersed power transformers for grid connection, step-down distribution and industrial isolation. 10kV to 35kV, up to 2500kVA, custom winding ratio available, IEC 60076 standard.

  • 1. Dry-type transformers rated 10kV / 35kV, up to 2500kVA for indoor installation
  • Oil-immersed transformers rated 35kV to 110kV for outdoor substation use
  • Custom winding ratio and voltage tap configuration on request
  • Insulation class F / H for dry-type, ONAN / ONAF cooling for oil-immersed
  • On-load or off-load tap changer options for voltage regulation
  • IEC 60076 certified — suitable for utility, industrial and commercial projects
Send Enquiry
WhatsApp Us

MOQ / Project-based

Lead Time / 15-30 days

Supply / B2B / Wholesale

Origin / China

Product Overview

Power transformers step voltage up or down between different levels in an electrical distribution system. They are a core component in substations, industrial plants and commercial buildings, connecting medium voltage utility supply to low voltage distribution networks.

RichingPower supplies two main transformer types: dry-type cast resin transformers for indoor installation in buildings and data centers, and oil-immersed transformers for outdoor substations and utility grid applications. Custom winding ratios and enclosure ratings are available for project-specific requirements.

All transformers are manufactured to IEC 60076 and supplied with test reports. Factory acceptance testing (FAT) and third-party inspection are available on request for large project orders.

Dry-type vs Oil-immersed

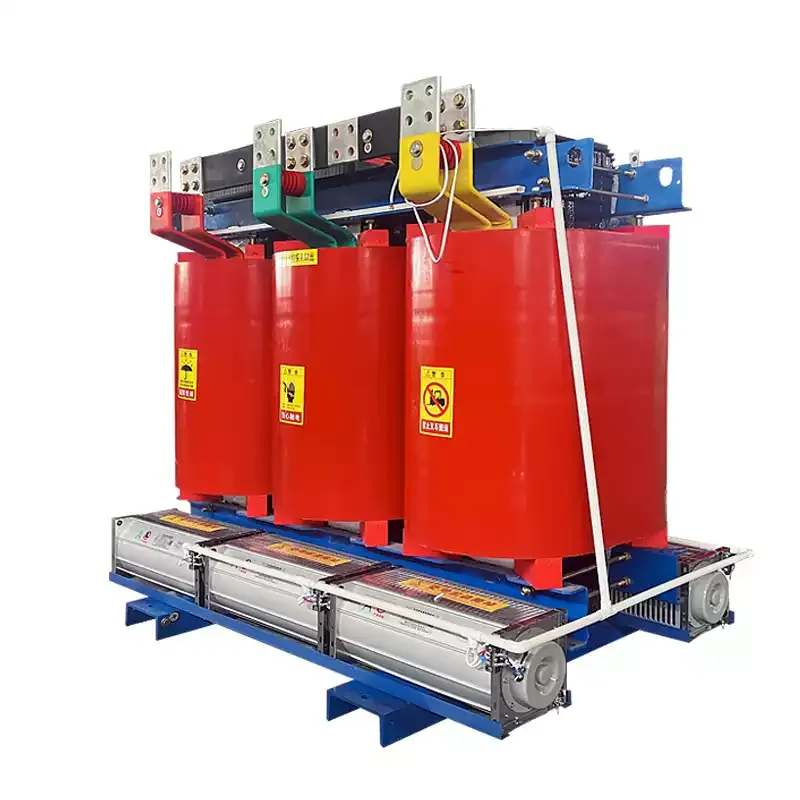

Dry-type (Cast Resin)
Indoor use, no oil maintenance, self-extinguishing, suitable for buildings, data centers and underground facilities. Class F / H insulation.

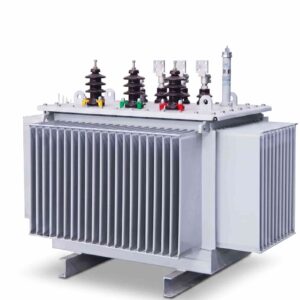

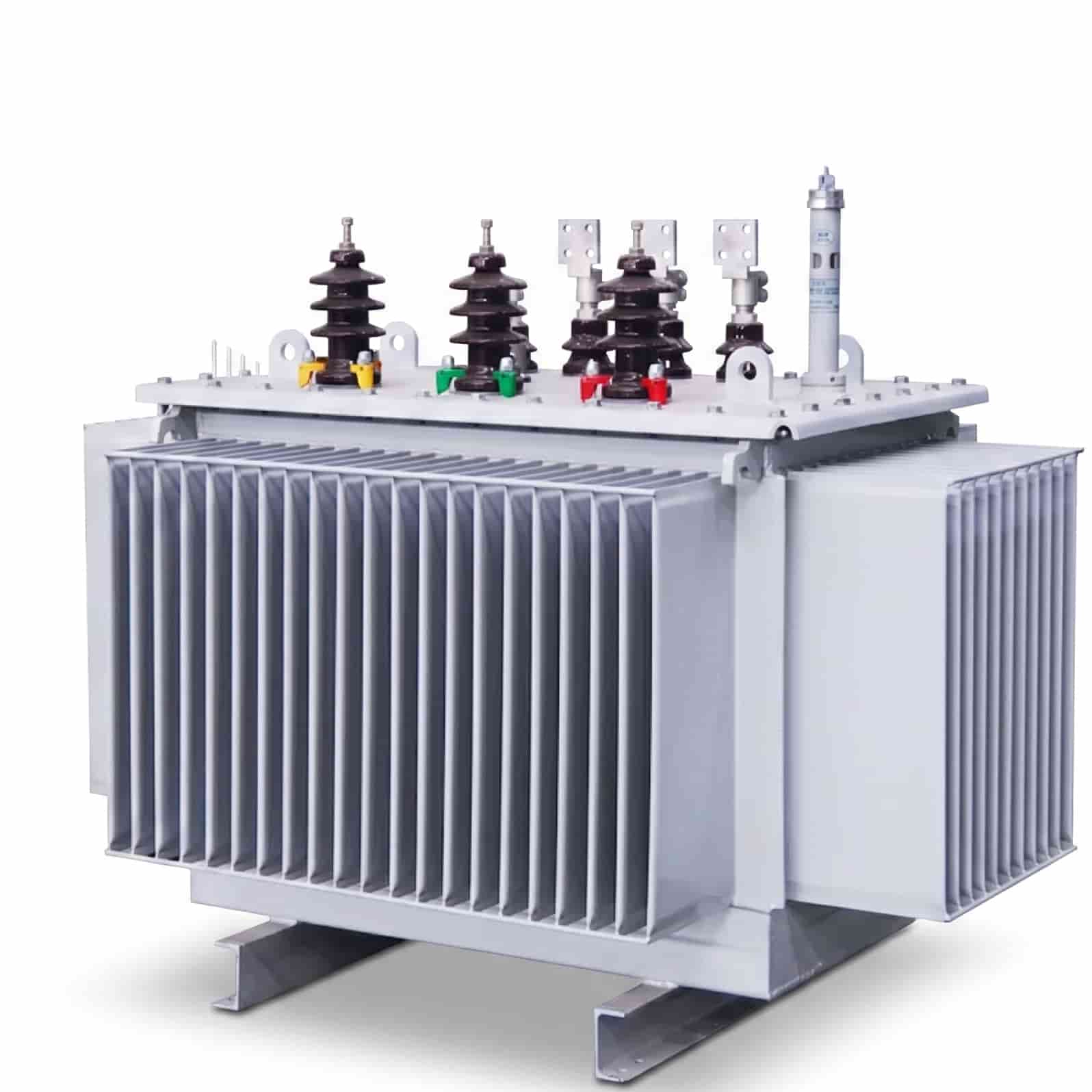

Oil-immersed
Outdoor substation use, higher voltage and kVA ratings, ONAN / ONAF cooling, lower cost per kVA for large capacity. Requires oil maintenance.
Parameter Dry-type Oil-immersed
Primary Voltage6kV, 10kV, 35kV35kV, 66kV, 110kV
Secondary Voltage0.4kV (400V) standard; custom available10kV, 6kV, 0.4kV
Rated Power100kVA – 2500kVA100kVA – 63MVA
Cooling MethodAN (natural air) or AF (forced air)ONAN / ONAF / OFAF
Insulation ClassClass F (155°C) or Class H (180°C)Mineral oil insulation
Tap ChangerOff-load tap changer (±2 × 2.5%)On-load or off-load tap changer
InstallationIndoor (IP00 / IP21 / IP23)Outdoor (IP44 / IP54)
ConnectionDyn11, Yyn0, Dzn0 (standard)YNd11, Dyn11, YNyn0
Applicable StandardsIEC 60076-11, GB/T 10228IEC 60076-1, GB/T 1094.1

Transformers supplied by RichingPower are manufactured and tested to the following international standards. Factory test reports are supplied with every unit.

IEC 60076-1
General requirements for power transformers — international standard for oil-immersed type.
IEC 60076-11
Dry-type transformers — requirements for cast resin and air-cooled types.
GB/T 1094.1
China national standard for oil-immersed power transformers, equivalent to IEC 60076-1.
GB/T 10228
China national standard for dry-type power transformers.
IEC 60076-3
Insulation levels, dielectric tests and external clearances for power transformers.
IEC 60076-5
Ability to withstand short circuit — transformer short circuit withstand testing.

Power transformers are used wherever a change in voltage level is required. Type selection depends on installation location, voltage ratio, power rating and maintenance access.

Industrial Plants
Step-down transformer from utility MV supply to plant LV distribution. Dry-type for indoor substations, oil-immersed for outdoor pad-mount installations.
Commercial Buildings
Dry-type transformers in basement or roof substations for high-rise buildings, shopping centers and hospitals.
Power Substations
Oil-immersed transformers for utility primary and secondary substations, distribution network step-down stations.
Data Centers
Dry-type transformers for MV utility connection and isolation transformers for sensitive IT load circuits.
Renewable Energy
Step-up transformers for wind turbines and solar plants, collector station transformers for large-scale renewable projects.
Infrastructure Projects
Traction transformers for rail projects, tunnel power supply transformers and airport electrical infrastructure.

Request a Quotation

Send us your transformer specification or single-line diagram. We support custom winding ratio, tap changer configuration and third-party inspection for project orders.

What to include in your enquiry:

–Type — dry-type or oil-immersed
–Primary voltage and secondary voltage (e.g. 10kV / 0.4kV)
–Rated power in kVA or MVA
–Vector group (e.g. Dyn11, YNyn0)
–Tap changer — on-load or off-load
–Installation — indoor or outdoor
–Applicable standard (IEC 60076, GB or other)
–Quantity and destination country

We reply within 24 hours. Factory test reports and third-party inspection are available on request.
