Residential Energy Storage Battery
Stackable wall-mounted LFP home batteries for pairing with hybrid inverters. 5kWh to 20kWh, expandable capacity, solar self-consumption and home backup power, IEC 62619 / CE / UN38.3 certified.
KEY FEATURES
- LFP cell chemistry — >6,000 cycles at 80% DOD, safe for indoor home installation

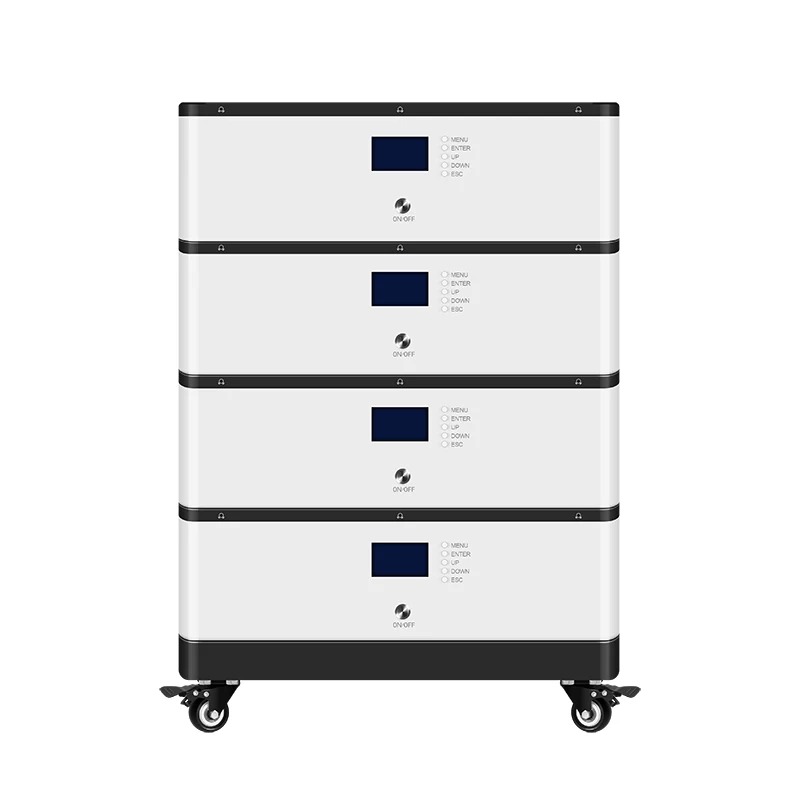

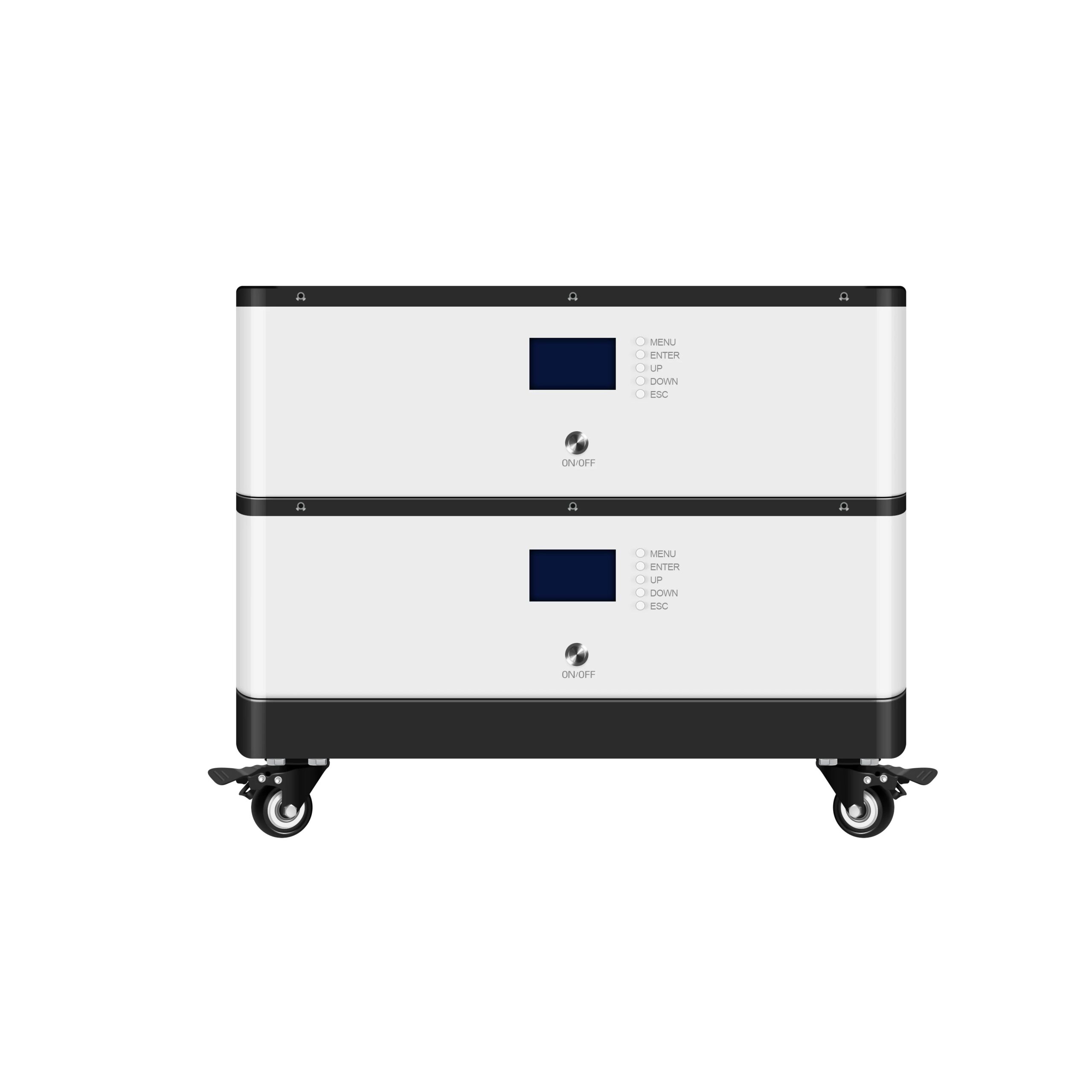

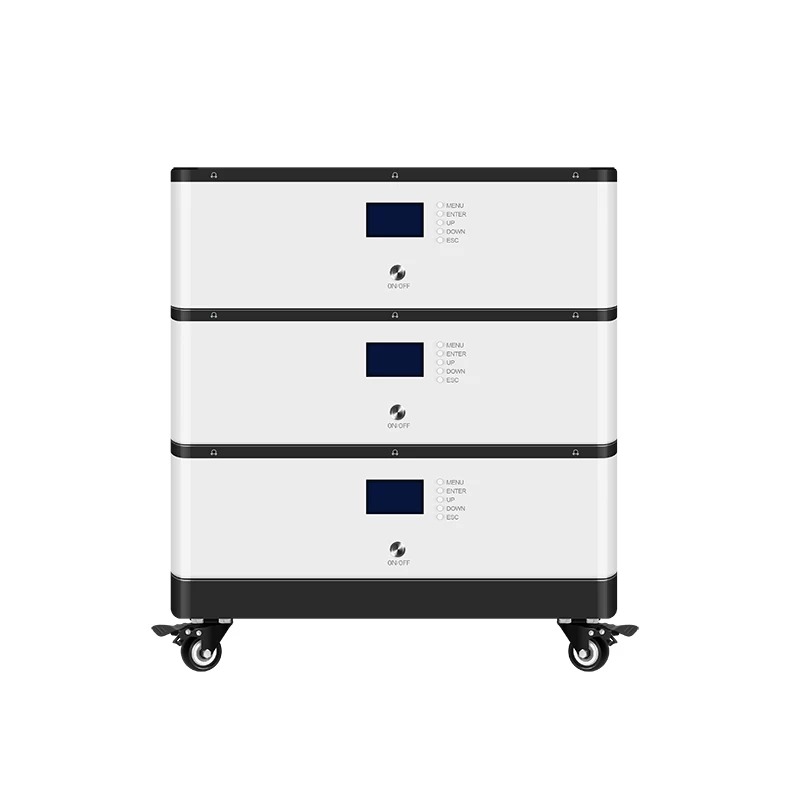

- Capacity options: 5kWh, 10kWh, 15kWh, 20kWh — stackable up to 4 units in parallel
- Compatible with most hybrid inverters via CAN or RS485 BMS communication
- Wall-mount or floor-stand installation — compact design for indoor and garage use
- Wide compatibility: 48V / 51.2V nominal voltage, 100A continuous charge/discharge
- IEC 62619, CE and UN38.3 certified — suitable for residential B2B wholesale supply
MOQ / Project-based
Lead Time / 15-30 days
Supply / B2B / Wholesale
Origin / China
Product Overview
Residential LFP batteries store solar energy for use during the evening, provide backup power during grid outages and enable time-of-use optimization by shifting consumption from peak to off-peak tariff periods. They are designed for indoor installation and pair with hybrid inverters via digital BMS communication.
RichingPower supplies wall-mounted LFP batteries in 5kWh modules, stackable up to 4 units (20kWh) in a single parallel group. The 48V / 51.2V nominal voltage is compatible with most single-phase and three-phase hybrid inverters from major brands. BMS communication via CAN or RS485 enables full SOC visibility and charge control from the inverter.
Available for B2B wholesale supply to solar installers, distributors and system integrators. Custom branding and OEM packaging are available for volume orders.
Capacity Configuration
| Parameter | Specification |
|---|---|
| Cell Chemistry | LFP (LiFePO₄) |
| Capacity per Module | 5kWh |
| Stackable Capacity | 5 / 10 / 15 / 20kWh (up to 4 units in parallel) |
| Nominal Voltage | 48V / 51.2V DC |
| Voltage Range | 44V – 58.4V DC |
| Max Charge / Discharge | 100A continuous |
| Depth of Discharge | 80% (standard); 90% (optional) |
| Cycle Life | >6,000 cycles at 80% DOD (25°C) |
| BMS Communication | CAN bus / RS485 (inverter BMS sync) |
| Installation | Wall-mount or floor-stand |
| Operating Temperature | 0°C to +50°C (charging); –10°C to +55°C (discharging) |
| Certifications | IEC 62619, CE, UN38.3, RoHS |
Residential batteries supplied by RichingPower are certified to the following standards. These certifications are required for most residential solar battery installations and import compliance.
Residential batteries are used in home solar-plus-storage systems and light commercial applications. Capacity selection depends on daily consumption, solar system size and backup requirement.
Request a Quotation
Send us your order quantity and inverter compatibility requirement. We support B2B wholesale orders for solar installers and distributors with competitive pricing for volume orders.
What to include in your enquiry:
We reply within 24 hours with pricing and availability. Volume pricing and container load quotations available on request.
