Electrical Cables
Control Cable
Multi-core copper conductor control cables for automation systems, control panels and instrumentation wiring. Shielded and unshielded options, 300/500V to 0.6/1kV rated, IEC / GB / VDE standard.
KEY FEATURES

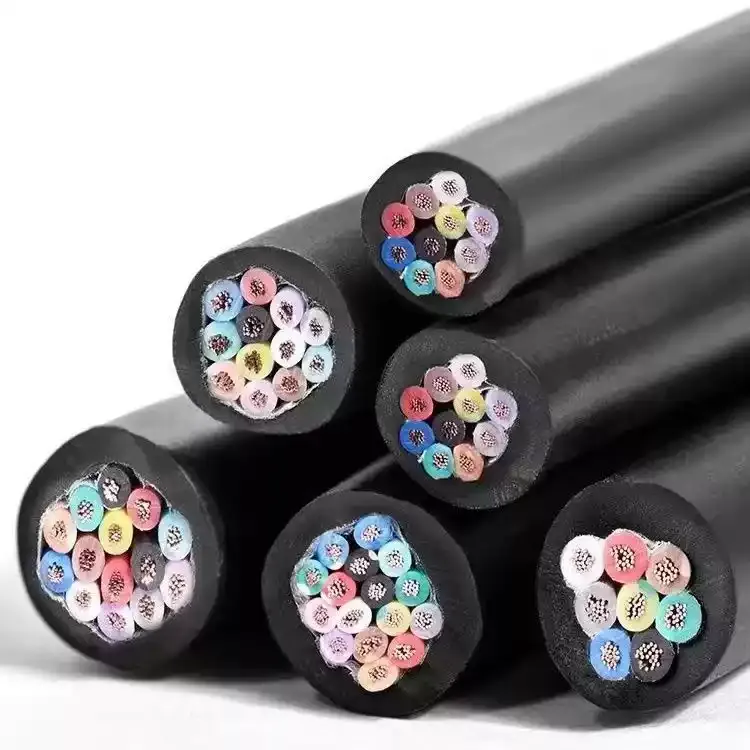

- Multi-core copper conductor, 2 to 61 cores available
- Shielded options: overall foil, overall braid, or individual + overall screen
- XLPE or PVC insulation, 300/500V and 0.6/1kV voltage ratings

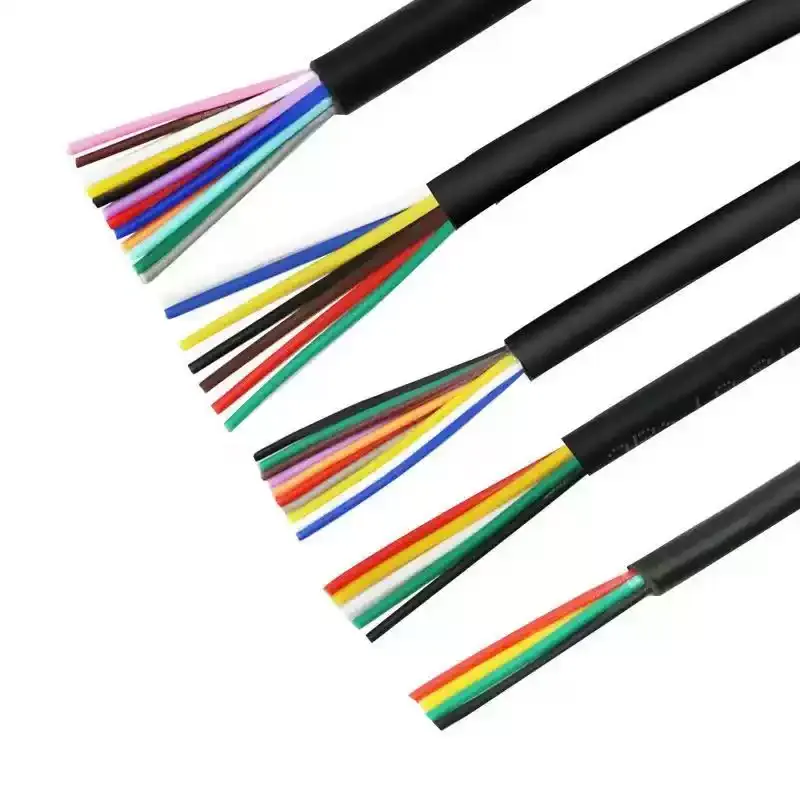

- Color-coded cores to IEC 60446 or numbered cores for high core-count cables
- LSZH outer sheath option for low smoke, halogen-free installations
- Project-based supply with batch quotation for multi-type cable schedules
MOQ / Project-based
Lead Time / 15-30 days
Supply / B2B / Wholesale
Origin / China
Product Overview
Control cables carry low-level electrical signals between control panels, automation systems, PLCs, sensors and field instruments. They are multi-core, small cross-section cables used to transmit control and monitoring signals rather than power current.
RichingPower supplies PVC-insulated and XLPE-insulated control cables in both shielded and unshielded versions. Shielded options include overall foil screen, overall braid screen, and individual pair screen for environments with electromagnetic interference.
Common type codes include KVV, KVVP, KVVP2 (GB) and LiYY, LiYCY (VDE/European). We support project-based procurement for multi-cable schedules with different core counts and cross-sections.
Shielding Options
Low-noise environments, short runs inside panels
General EMI protection — most common choice
Higher EMI environments, coverage >85%
Instrumentation, high-frequency signal isolation
| Parameter | Specification |
|---|---|
| Voltage Rating | 300/500V or 0.6/1kV |
| Conductor Material | Copper (stranded, Class 2 or Class 5 flexible) |
| Cross-Section Range | 0.5mm², 0.75mm², 1.0mm², 1.5mm², 2.5mm², 4mm² |
| Number of Cores | 2 to 61 cores (common: 4, 7, 10, 14, 19, 27, 37, 61) |
| Insulation | PVC (70°C) or XLPE (90°C) |
| Shielding Options | Unshielded / Overall Al foil + drain wire / Overall Cu braid / Individual + overall screen |
| Outer Sheath | PVC (black or grey) or LSZH |
| Core Identification | Color-coded (IEC 60446) or numbered cores |
| Common Type Codes | KVV, KVVP, KVVP2, KVVRP (GB); LiYY, LiYCY (VDE) |
| Applicable Standards | IEC 60227, GB/T 9330, VDE 0281, BS 5308 |
Control cables supplied by RichingPower are manufactured to the following standards. Please specify the required standard when submitting an enquiry.
Control cables are used wherever control signals need to be transmitted between field devices and control systems. Shielding type is selected based on the EMI environment.
Request a Quotation
We support batch quotation for multi-type control cable orders. Send your cable schedule for a consolidated quote.
What to include in your enquiry:
We reply within 24 hours. For multi-type orders, attach your cable schedule directly to the enquiry.
